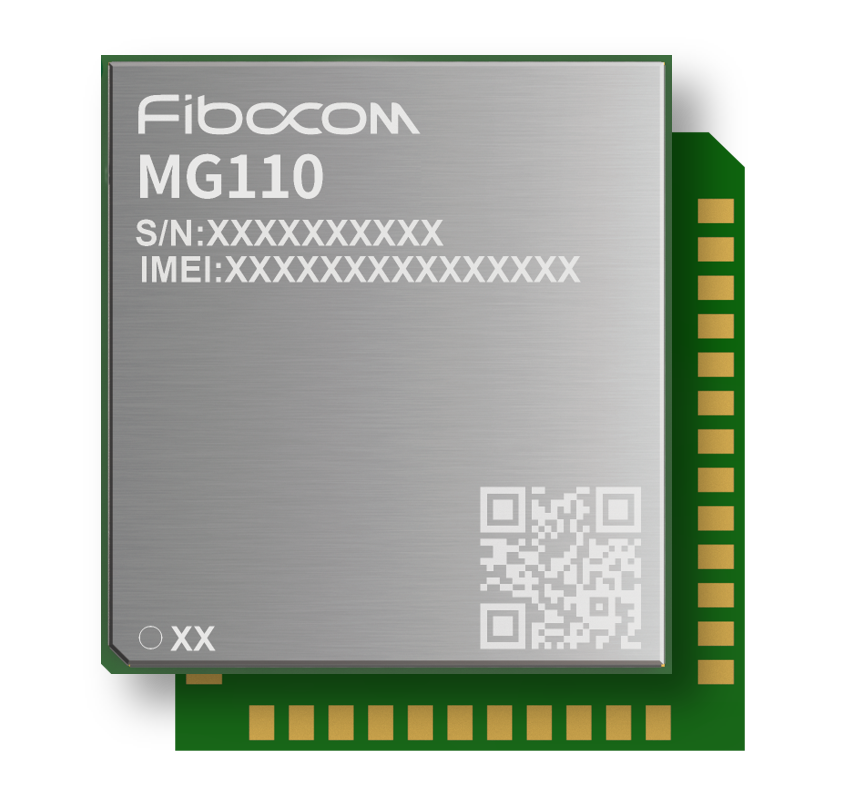

MG110
・Air Interface: LTE Cat 1
・Package: LCC+LGA
・Dimensions: 26.2 x 24.2 x 2.2 mm
・Operating Voltage: 3.3V ~ 4.3V (Typical 3.8V)
・Operating Temperature: -30°C ~ +75°C
・Air Interface: LTE Cat 1
・Package: LCC+LGA
・Dimensions: 26.2 x 24.2 x 2.2 mm
・Operating Voltage: 3.3V ~ 4.3V (Typical 3.8V)
・Operating Temperature: -30°C ~ +75°C
The MG110 series is an LTE Cat 1 wireless communication module launched by PG INT, supporting LTE FDD and adopting an LGA package with dimensions of 26.2 x 24.2 x 2.2 mm. It features high performance, low latency, and high reliability, primarily targeting the Japanese IoT market. The MG110 series is equipped with comprehensive industrial-standard interfaces and built-in network protocols, meeting diverse hardware and software requirements for IoT products. It is widely applicable to IoT scenarios such as POS, IPC, Tracker, Meter, etc., delivering a seamless wireless experience for users. The MG110 series supports multiple memory configuration options, diversity antennas, and optional GNSS (GPS/Galileo/QZSS/BeiDou/GLONASS).
| Air Interface | LTE Cat 1 | |
| Package | LCC+LGA | |
| Dimension (mm) | 26.2 x 24.2 x 2.2 | |
| Frequency Bands | -JP (Japan) | LTE FDD: B1/3/8/18/19/26 |
| Power Supply | 3.3V ~ 4.3V (Typical 3.8V) | |
| Operating Temp. | -30°C ~ +75°C | |
| LTE FDD (Mbps) | 10.3(DL)/5.2(UL) | |
| LTE TDD (Mbps) | NA | |
| DC-HSPA+(Mbps) | NA | |
| HSPA/HSPA+(Mbps) | NA | |
| WCDMA(Kbps) | NA | |
| TD-SCDMA (Mbps) | NA | |
| EVDO(Mbps) | NA | |
| CDMA2000 1X(Kbps) | NA | |
| EDGE(Kbps) | NA | |
| GPRS(Kbps) | NA | |
| Wi-Fi scan | NA | |
| Bluetooth | NA | |
| SIM | ⦁ | |
| eSIM | NA | |
| eCALL | NA | |
| OpenCPU | Optional | |
| MUX | ⦁ | |
| Dual SIM | NA | |
| Jamming Detection | NA | |
| USSD | ⦁ | |
| STK | NA | |
| LBS | ⦁ | |
| FOTA | DFOTA | |
| OS Drivers | Linux/Windows/Android | |
| GNSS | ⦁ | |
| VOLTE | NA | |
| CSD | NA | |
| TTS | NA | |
| SMS | SMS/SGs/IMS | |
| Audio | ⦁ | |
| Voice Code | NA | |
| Audio Play/Record | ⦁ | |
| Protocols |
HTTP(S)/FTP(S)/TCP(S)/UDP/IPV4/IPV6/ NITZ/NTP/SSL/TLS |
|
| SIM | x 1, 1.8V/3.0V | |
| USB | x 1, USB2.0 | |
| PCIe | NA | |
| UART | X 2 | |
| SPI | ⦁ | |
| ADC | x 2 | |
| GPIO | ⦁ | |
| Regulation | RoHS/JATE/TELEC | |
| Operator | DOCOMO/KDDI/SOFTBANK* | |
| Industry | HF | |
